AW

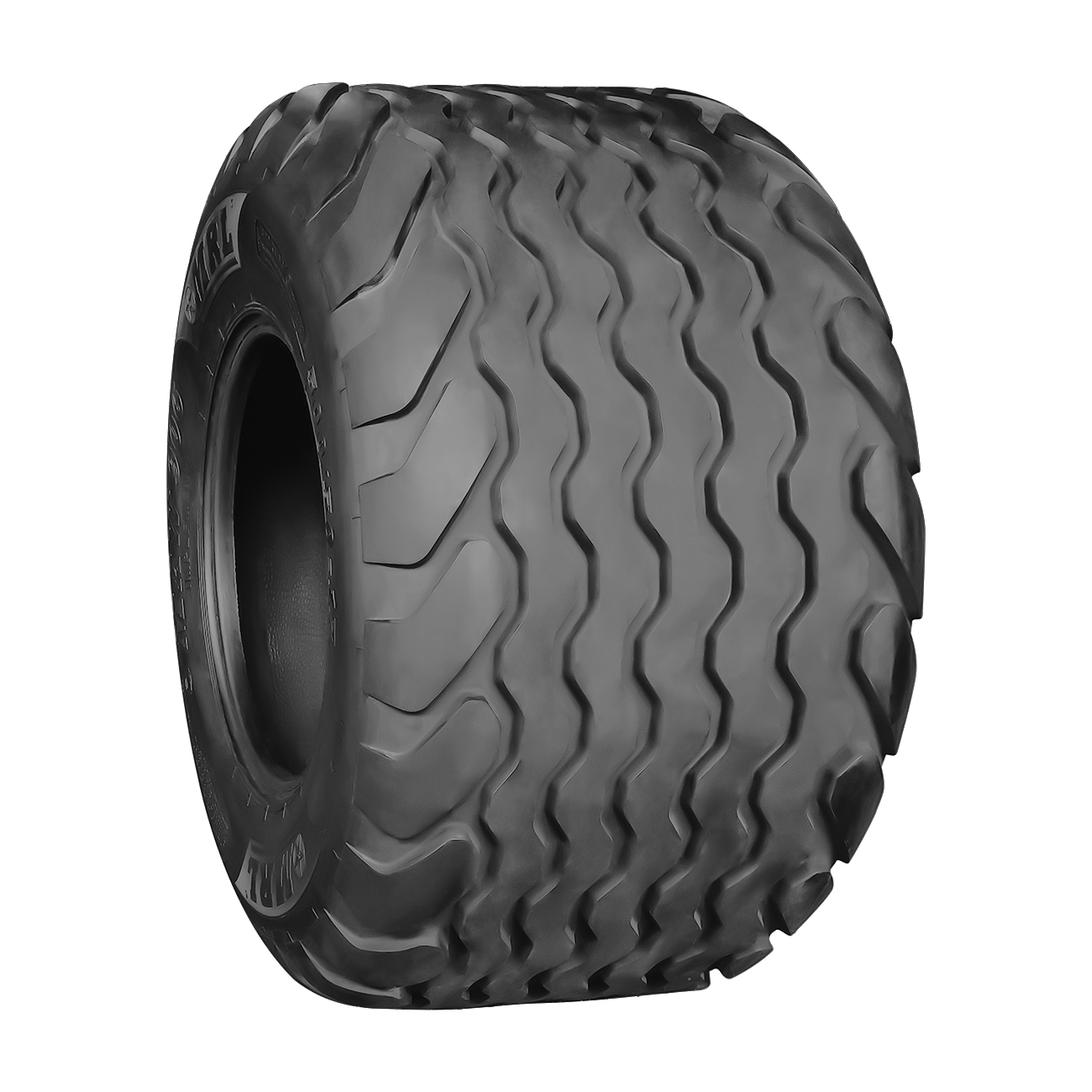

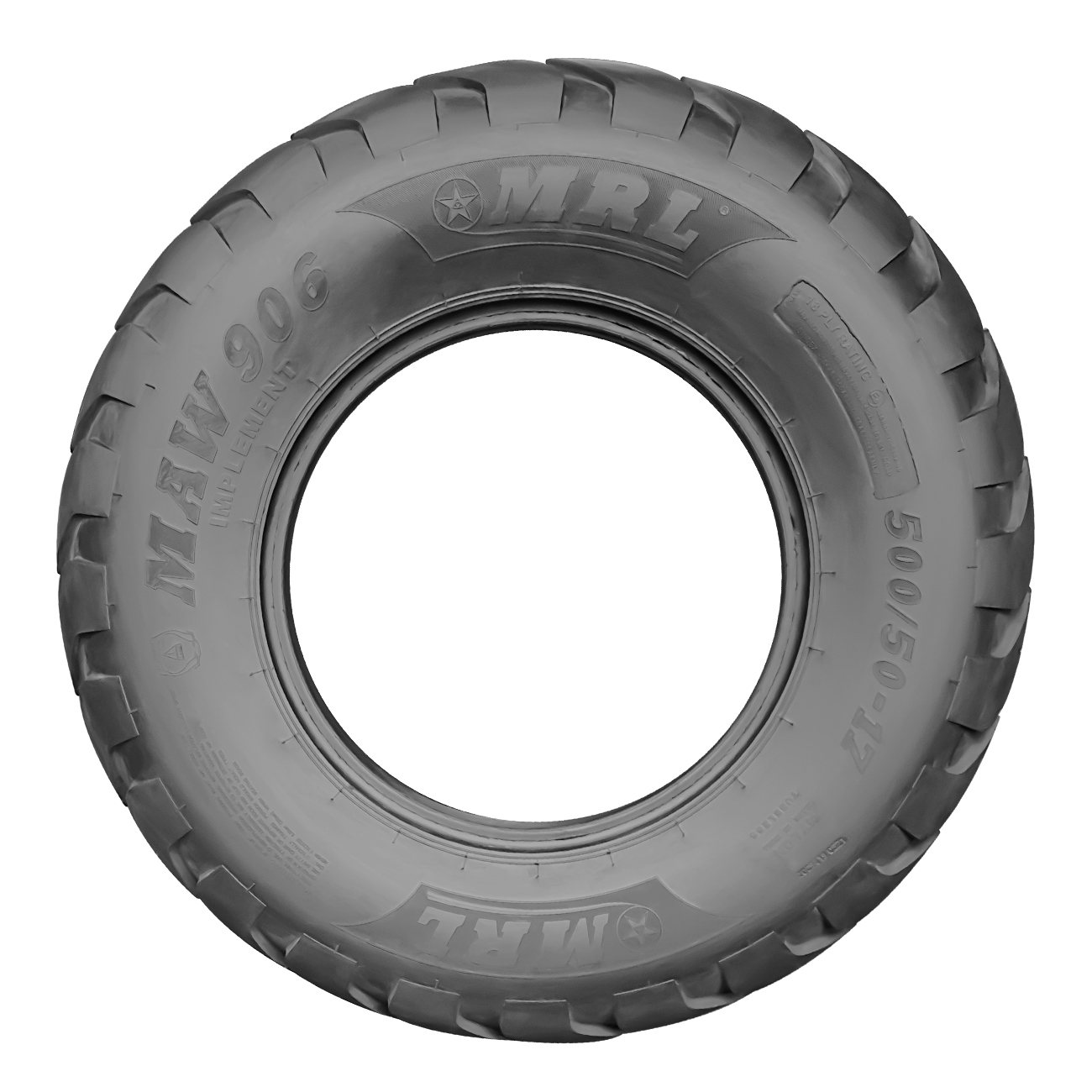

MAW 906 is a tyre designed for soil tillage, haulage and hay harvesting application. More land area suitable to use in implement machinery, trailers, hay harvesters and balers for life and stability. This tyre may be used in all operating condition where need more handling features.

Salient Features

Feature	Advantage	Benefit
Wider tread pattern	Extended footprint	Lessen soil degradation
Optimum round shoulder	Better steering experience	Enhanced maneuvering
Strong nylon casing	Higher strength	More durability

Send enquiry

Tire Sizes

AGRICULTURAL IMPLEMENT TRAILER 380/55-17 Print Certificate

AGRICULTURAL IMPLEMENT TRAILER 480/45-17 Print Certificate

AGRICULTURAL IMPLEMENT TRAILER 500/50-17 Print Certificate

Send enquiry

TRAILER

AGRICULTURAL IMPLEMENTS

BALER

First Name

Last Name

Email ID

Contact No.

Address

Country

Province

Message

I agree to Privacy Policy and Legal
MRL Tyres will not share your information with any third party. We will also ensure your data is securely transmitted to our secure data environment where it will be protected within the MRL Tyres infrastructure.
By using this form you agree with the storage and handling of your data by this website.

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load ,kgs.					Recommended Load ,kgs.
				Unloaded Dimension							Speed, km/h					Speed, km/h
				SW	OD						Free Rolling Application					Drive Wheel Application
				mm	mm	mm	mm			Bar	Static	10	25	30	40	Static	10	25	30	40
380/55-17	TL	13	-	391	850	379	2490	10	134A6/130A8	1.9	2920	2290	1880	1760	1580	3150	1730	1430	1340	1200
										2.1	3100	2430	2000	1870	1680	3270	1790	1480	1390	1240
										2.3	3290	2580	2130	1990	1790	3390	1860	1540	1440	1290
										2.6	3500	2740	2270	2120	1900	3510	1930	1600	1490	1340

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load ,kgs.					Recommended Load ,kgs.
				Unloaded Dimension							Speed, km/h					Speed, km/h
				SW	OD						Free Rolling Application					Drive Wheel Application
				mm	mm	mm	mm			Bar	Static	10	25	30	40	Static	10	25	30	40
380/55-17	TL	13	-	391	850	379	2490	14	141A6/137A8	2.2	3540	2770	2300	2150	1910	3820	2110	1750	1630	1460
										2.4	3760	2940	2440	2280	2030	3960	2180	1810	1690	1510
										2.7	4000	3130	2600	2420	2160	4110	2260	1870	1750	1560
										3	4250	3330	2760	2575	2300	4260	2340	1940	1810	1620

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index / Speed Symbol	Inflation Pressure	Recommended Load ,kgs.					Recommended Load ,kgs.
				Unloaded Dimension							Speed, km/h					Speed, km/h
				SW	OD						Free Rolling Application					Drive Wheel Application
				mm	mm	mm	mm			Bar	Static	10	25	30	40	Static	10	25	30	40
380/55-17	TL	13	-	391	850	379	2490	18	152A6/148A8	2.3	4880	3820	3160	2960	2620	5260	2900	2400	2240	2010
										2.6	5190	4060	3360	3150	2790	5460	3010	2490	2320	2080
										2.9	5510	4310	3570	3340	2960	5650	3110	2580	2400	2150
										3.2	5860	4580	3800	3550	3150	5860	3220	2670	2490	2230

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index/Speed Symbol	Inflation pressure	Recommended Load Ibs					Recommended Load Ibs
				Unloaded dimension							Speed, mph					Speed, mph
				SW	OD						Free Rolling Application					Drive Wheel Application
				In	In	In	In			PSI	Static	6	16	19	25	Static	6	16	19	25
380/55-17	TL	13	-	15.4	33.5	14.9	98.0	10	134A6/130A8	27.6	6437	5049	4145	3880	3483	6945	3814	3153	2954	2646
										30.6	6834	5357	4409	4123	3704	7209	3946	3263	3064	2734
										33.9	7253	5688	4696	4387	3946	7474	4101	3395	3175	2844
										37.7	7716	6041	5004	4674	4189	7738	4255	3527	3285	2954

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index/Speed Symbol	Inflation pressure	Recommended Load Ibs					Recommended Load Ibs
				Unloaded dimension							Speed, mph					Speed, mph
				SW	OD						Free Rolling Application					Drive Wheel Application
				In	In	In	In			PSI	Static	6	16	19	25	Static	6	16	19	25
380/55-17	TL	13	-	15.4	33.5	14.9	98.0	14	141A6/137A8	31.8	7804	6107	5071	4740	4211	8422	4652	3858	3594	3219
										35.2	8289	6482	5379	5027	4475	8730	4806	3990	3726	3329
										39.2	8818	6900	5732	5335	4762	9061	4982	4123	3858	3439
										43.5	9370	7341	6085	5677	5071	9392	5159	4277	3990	3571

Size	Type	Recommended Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	PR	Load Index/Speed Symbol	Inflation pressure	Recommended Load Ibs					Recommended Load Ibs
				Unloaded dimension							Speed, mph					Speed, mph
				SW	OD						Free Rolling Application					Drive Wheel Application
				In	In	In	In			PSI	Static	6	16	19	25	Static	6	16	19	25
500/50-17	TL	16	-	19.5	38.0	16.0	106.8	18	154A6/150A8	44.5	11354	8863	7385	6878	6151	12258	6724	5578	5203	4674
										49.5	12081	9436	7848	7319	6548	12721	6967	5776	5401	4850
										54.8	12831	10031	8333	7782	6945	13162	7231	5997	5600	5027
										60.9	13647	10670	8863	8267	7385	13647	7496	6217	5798	5203
