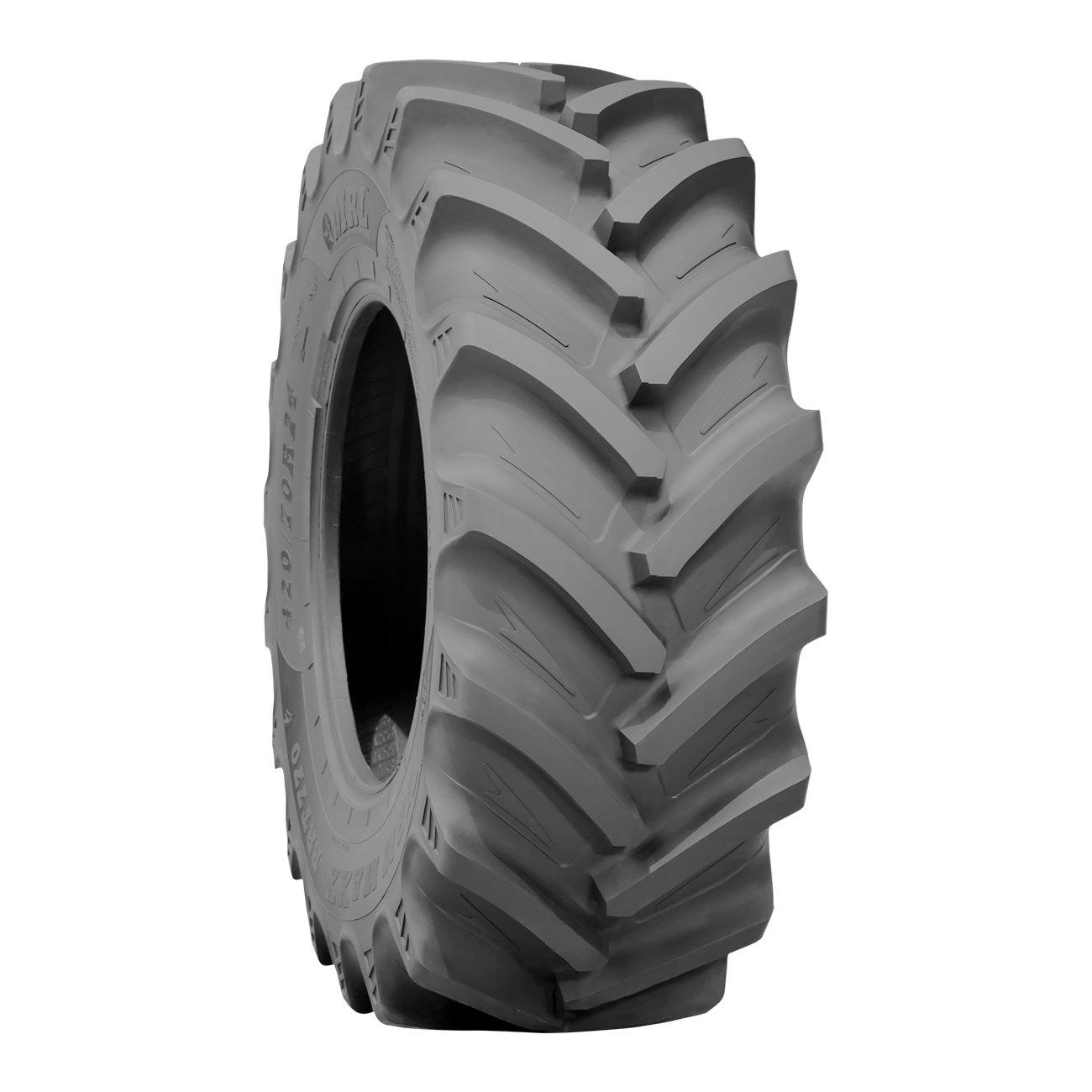

FARM MAXX 70

FARM MAXX 70 is a wide contact patch radial tire developed for modern and high-power tractors for several heavy-duty applications such as soil tillage, field and road transport, and vineyard harvesting. MRL provides special self-cleaning deep lugs tread pattern, radial nylon casing, mudguard, and unique shoulder design to ensure excellent grip and extended tyre life cycle.

Salient Features

Feature	Advantage	Benefit
Special RIM protector	Resist impact	Better durability
Higher tread depth	Support better Traction	Higher mileage
Special rubber compound	Cut and chip resistant	Extended life

Send enquiry

Tire Sizes

RADIAL R-1W TRACTOR 70 SERIES 280/70R16 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 280/70R18 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 260/70R20 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 300/70R20 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 320/70R20 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 320/70R24 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 360/70R24 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 380/70R24 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 420/70R24 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 480/70R24 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 380/70R28 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 360/70R28 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 420/70R28 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 480/70R28 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 420/70R30 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 480/70R30 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 600/70R30 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 480/70R34 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 520/70R34 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 480/70R38 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 520/70R38 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 580/70R38 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 710/70R38 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 620/70R42 Print Certificate

RADIAL R-1W TRACTOR 70 SERIES 710/70R42 Print Certificate

Send enquiry

2WD TRACTOR

4WD TRACTOR

AGRICULTURAL LOADER

COMBINE HARVESTER

UTILITY TRACTOR MFWA

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	30	40	50
280/70R16	TL	W8L	W8,W10	282	798	365	2387	112A8/B	0.8	650	750	1360	890	650	630	590	590
									1.2	820	950	1730	1130	830	800	750	750
									1.6	970	1130	2050	1340	990	950	890	890
									2.0	1110	1290	2320	1520	1120	1080	1010	1010
									2.4	1230	1430	2580	1680	1240	1200	1120	1120

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
280/70R16	TL	W8L	W8,W10	282	798	365	2387	112D/115A8	0.8	710	830	1360	890	700	650	620	590
									1.2	900	1050	1730	1130	890	820	790	750
									1.6	1060	1240	2050	1340	1050	970	930	890
									2.0	1210	1410	2320	1520	1200	1110	1060	1010
									2.4	1350	1570	2580	1680	1330	1230	1180	1120

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	19	25	31
280/70R16	TL	W8L	W8,W10	11.1	31.4	14.4	94.0	112A8/B	12	1430	1650	3000	1960	1430	1390	1300	1300
									17	1810	2090	3810	2490	1830	1760	1650	1650
									23	2140	2490	4520	2950	2180	2090	1960	1960
									29	2440	2840	5110	3350	2470	2380	2220	2220
									35	2710	3150	5680	3700	2730	2640	2470	2470

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
280/70R16	TL	W8L	W8,W10	11.1	31.4	14.4	94.0	112D/115A8	12	1560	1830	3000	1960	1540	1430	1370	1300
									17	1980	2310	3810	2490	1960	1810	1740	1650
									23	2330	2730	4520	2950	2310	2140	2050	1960
									29	2670	3110	5110	3350	2640	2440	2330	2220
									35	2970	3460	5680	3700	2930	2710	2600	2470

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	30	40	50
280/70R18	TL	W9	W8,W10	282	849	390	2539	114A8/B	0.8	680	800	1430	930	690	660	620	620
									1.2	860	1010	1820	1190	880	850	790	790
									1.6	1020	1190	2140	1400	1030	1000	930	930
									2.0	1160	1360	2440	1590	1180	1130	1060	1060
									2.4	1290	1510	2710	1770	1310	1260	1180	1180
