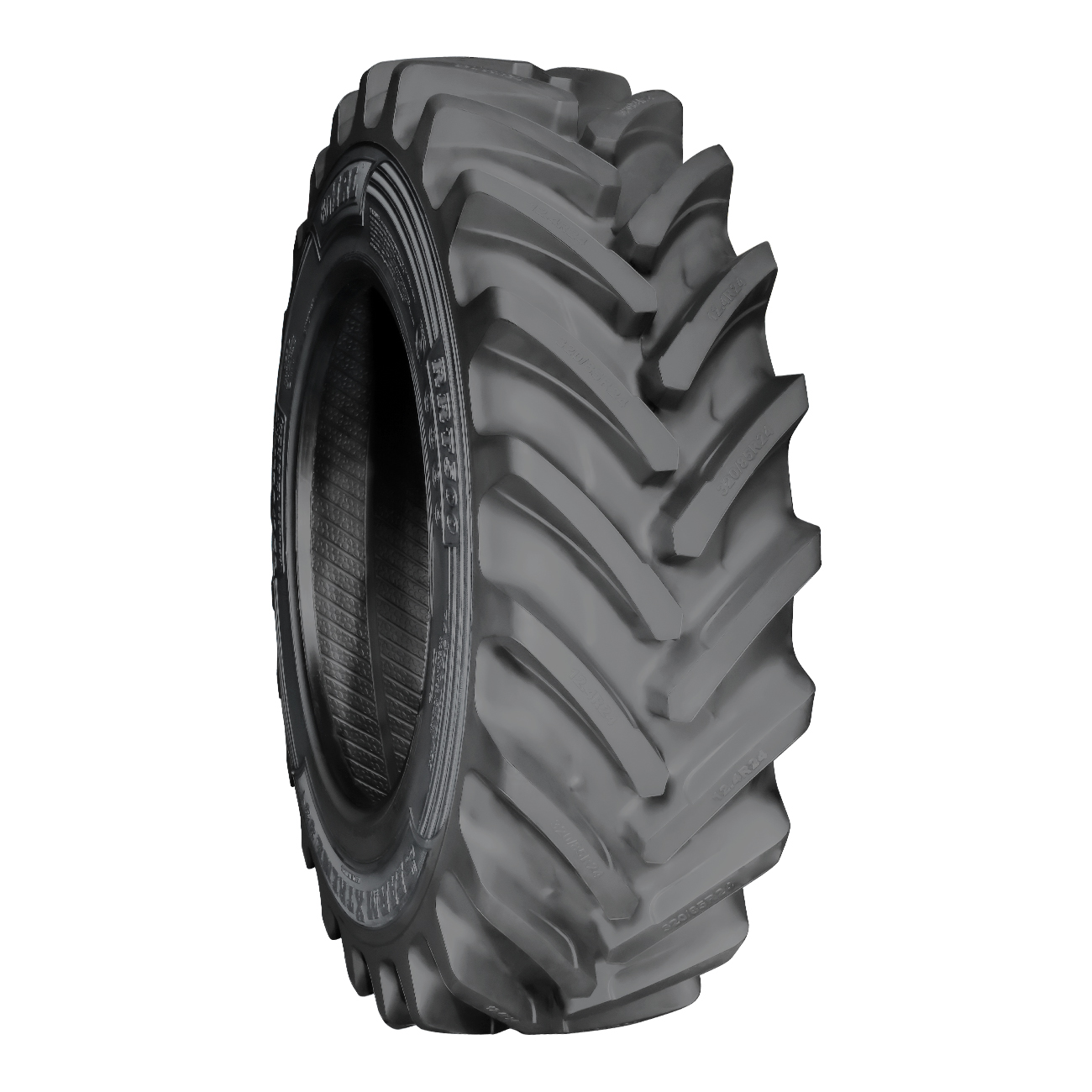

FARM XTREME 65

FARM XTREME 65 tread pattern represents the family of modern radial agricultural tyres with a low aspect ratio and stratified layer. It has a high load capacity also at high-speed levels, providing high traction capabilities and more soil protection. The optimum number of elastic lugs promises excellent self-cleaning capability. MRL provides Strong carcass and rigid belts to ensure long tyre life.

Salient Features

Feature	Advantage	Benefit
Fusion layer technology	Strong casing	Enhanced traction
Multi angled lugs	Increased traction	Optimum soil protection
Strong casing	Higher load carrying capacity	Extended Life

Send enquiry

Tire Sizes

RADIAL R-1W TRACTOR 65 SERIES 440/65R24 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 480/65R24 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 540/65R24 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 480/65R28 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 540/65R28 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 600/65R28 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 650/65R28 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 540/65R30 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 600/65R30 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 540/65R34 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 600/65R34 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 540/65R38 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 600/65R38 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 650/65R38 Print Certificate

RADIAL R-1W TRACTOR 65 SERIES 650/65R42 Print Certificate

Send enquiry

2WD TRACTOR

4WD TRACTOR

COMBINE HARVESTER

UTILITY TRACTOR MFWA

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
440/65R24	TL	W14L	W13,W15L	438	1187	543	3550	135D/138A8	0.8	1370	1610	2620	1710	1350	1250	1200	1140
									1.2	1740	2040	3340	2180	1720	1590	1520	1450
									1.6	2060	2410	3960	2580	2040	1880	1810	1720
									2.0	2350	2750	4510	2940	2320	2150	2060	1960
									2.4	2620	3060	5010	3270	2580	2390	2290	2180

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
440/65R24	TL	W14L	W13,W15L	17.2	46.7	21.4	139.8	135D/138A8	12	3020	3550	5770	3770	2970	2750	2640	2510
									17	3830	4490	7360	4800	3790	3500	3350	3190
									23	4540	5310	8720	5680	4490	4140	3990	3790
									29	5180	6060	9930	6480	5110	4740	4540	4320
									35	5770	6740	11040	7200	5680	5260	5040	4800

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
480/65R24	TL	W15L	W14L	483	1238	564	3703	140D/143A8	0.8	1510	1770	3010	1970	1550	1430	1380	1310
									1.2	1920	2250	3820	2490	1970	1820	1740	1660
									1.6	2270	2660	4530	2960	2330	2160	2070	1970
									2.0	2590	3030	5180	3380	2670	2460	2360	2250
									2.4	2880	3370	5750	3750	2960	2740	2630	2500

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
480/65R24	TL	W15L	W14L	19.0	48.7	22.2	145.8	140D/143A8	12	3330	3900	6630	4340	3410	3150	3040	2890
									17	4230	4960	8410	5480	4340	4010	3830	3660
									23	5000	5860	9980	6520	5130	4760	4560	4340
									29	5700	6670	11410	7440	5880	5420	5200	4960
									35	6340	7420	12670	8260	6520	6040	5790	5510

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
540/65R24	TL	W16L	W18L	550	1312	595	3924	146D/149A8	0.8	1890	2220	3630	2370	1870	1730	1660	1580
									1.2	2400	2810	4600	3000	2370	2190	2100	2000
									1.6	2840	3320	5450	3560	2810	2600	2490	2370
									2.0	3240	3780	6210	4050	3200	2960	2840	2700
									2.4	3600	4210	6900	4500	3560	3290	3150	3000

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	40	50	65
650/65R38 (SB)	TL	DW20B	-	650	1840	843	5503	180D/183A8	3.0	7120	8320	13640	8900	7030	6490	6230	5930
									3.5	7790	9100	14930	9740	7690	7110	6810	6490
									4.0	8420	9840	16150	10530	8320	7690	7370	7020
									4.5	9020	10540	17300	11280	8910	8230	7900	7520
									5	9590	11210	18400	12000	9480	8760	8400	8000

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
650/65R38 (SB)	TL	DW20B	-	25.6	72.4	33.2	216.7	180D/183A8	44	15680	18330	30040	19600	15480	14300	13720	13060
									51	17160	20040	32890	21450	16940	15660	15000	14300
									58	18550	21670	35570	23190	18330	16940	16230	15460
									65	19870	23220	38110	24850	19630	18130	17400	16560
									73	21120	24690	40530	26430	20880	19300	18500	17620

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6	Static	6	16	25	31	40
650/65R42	TL	DW20B	-	25.4	75.3	34.7	225.2	165D/168A8	12	6980	8170	13440	8770	6920	6390	6120	5840
									17	8850	10350	17030	11100	8770	8110	7780	7400
									23	10480	12250	20110	13130	10350	9580	9190	8740
									29	11940	13960	22910	14930	11810	10900	10460	9960
									36	13610	15900	26100	17030	13440	12420	11920	11340
