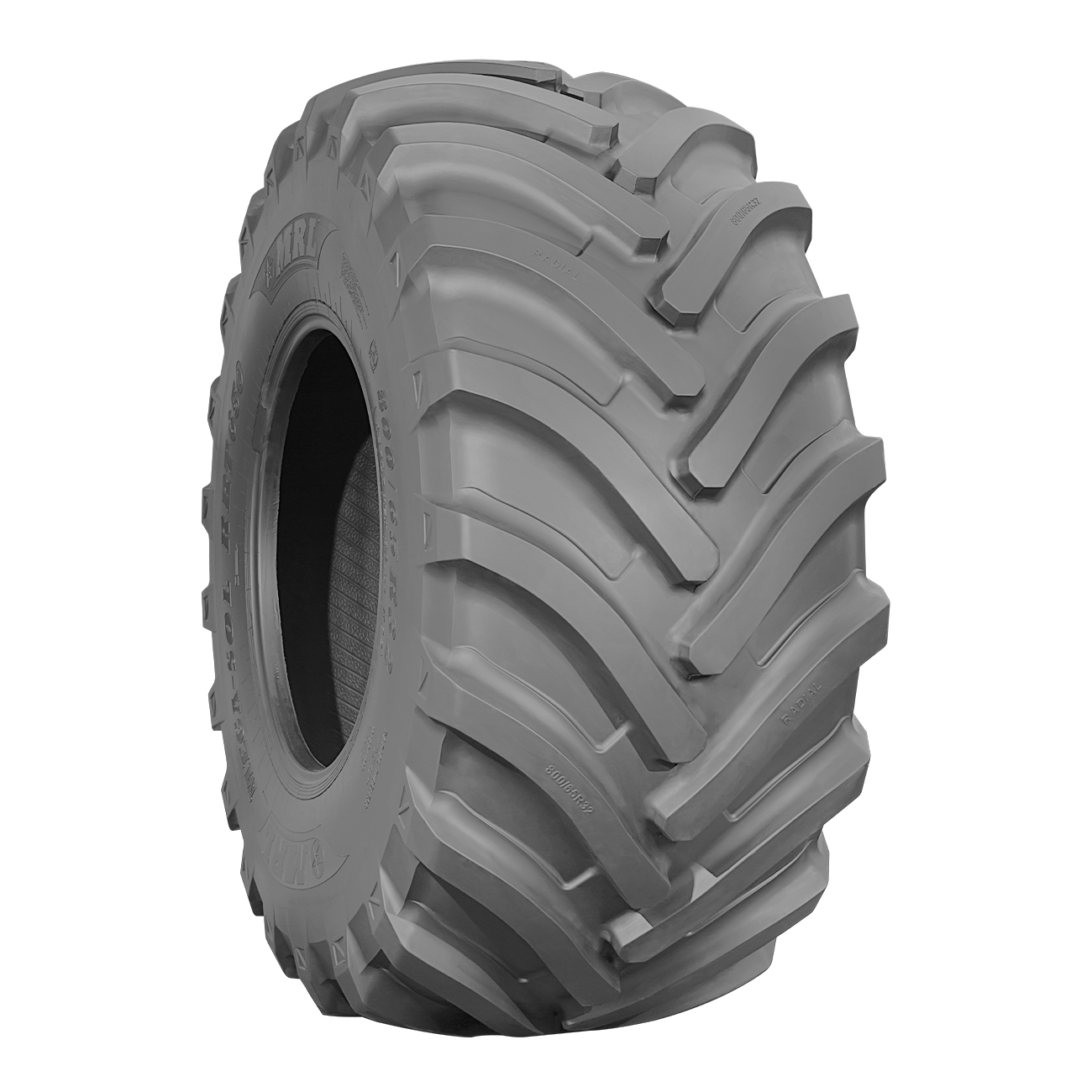

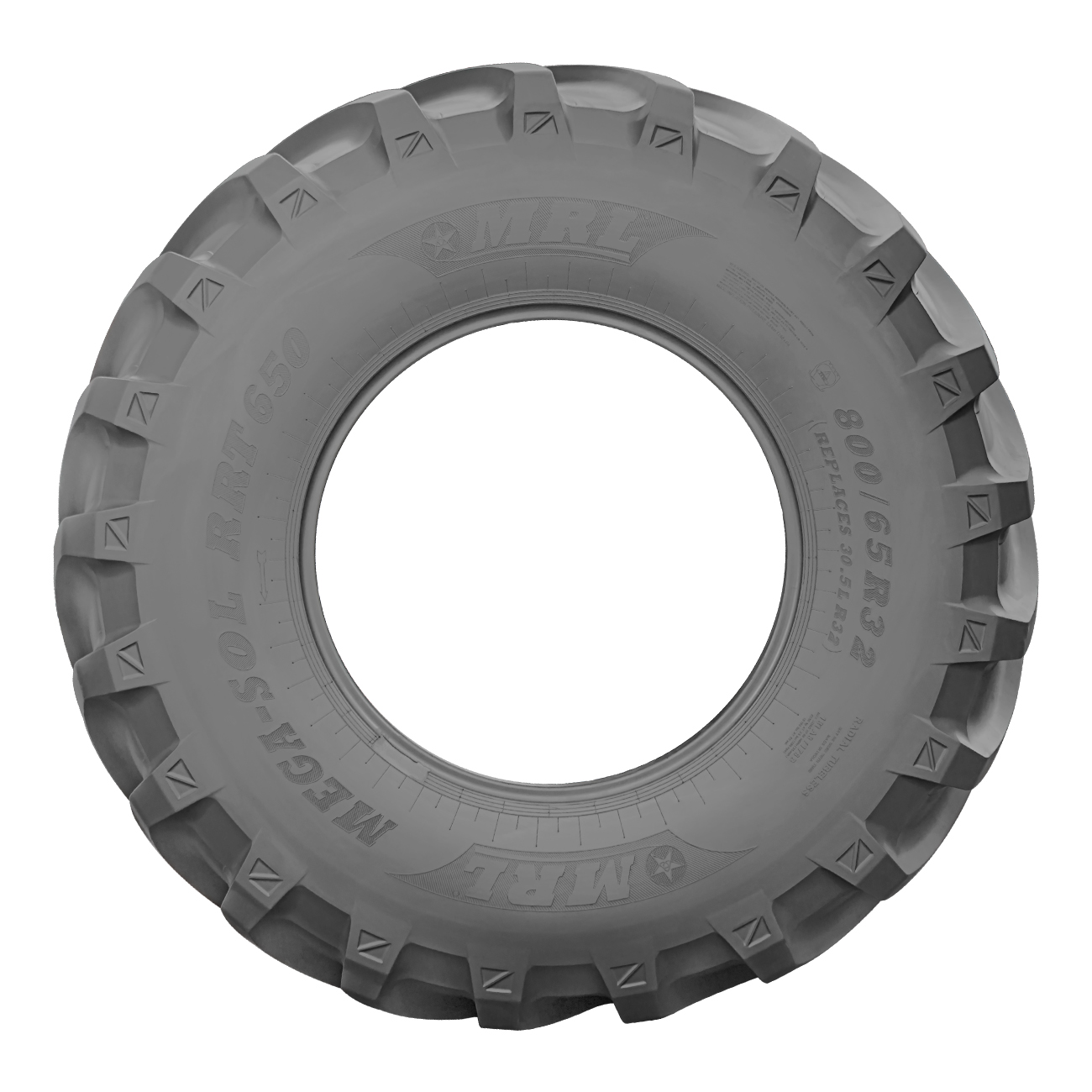

MEGA SOL

RRT650 is suitable for grain and vegetable Harvester, spreaders and load carrying equipment. Its high air volume and wide tread is enable to carry loads with low air pressure having minimum damage of surface . The lug designs are suitable for minimum slippage with constant speed during harvesting operation.

Salient Features

Feature	Advantage	Benefit
Optimum lug angle	Optimum traction	Enhanced grip on surface
Wider tread pattern	Extended foot print	High stability/ better load distribution
Strong casing	Suitable to carry higher load applications	Higher reliability, extended mileage

Send enquiry

Tire Sizes

RADIAL R-1W HARVESTING 620/75R26 Print Certificate

RADIAL R-1W HARVESTING 750/70R26 Print Certificate

RADIAL R-1W HARVESTING 650/75R32 Print Certificate

RADIAL R-1W HARVESTING 800/65R32 Print Certificate

Send enquiry

2WD TRACTOR

4WD TRACTOR

COMBINE HARVESTER

SLURRY TANKER

CHASER BINS

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	30	40	50
620/75R26	TL	DW20B	-	625	1590	714	4755	167A8/B	1.2	3370	3930	7060	4610	3410	3280	3070	3070
									1.4	3690	4300	7730	5040	3730	3600	3360	3360
									2.0	4540	5300	9520	6210	4600	4430	4140	4140
									2.6	5290	6180	11110	7250	5360	5170	4830	4830
									3.2	5970	6980	12540	8180	6050	5830	5450	5450

Size	Type	Rim	Alternate Rim	Unloaded dimension		Static Loaded Radius	Rolling Circumference	Load index /Speed Symbol	Inflation pressure	Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6		6	16	19	25	31
620/75R26	TL	DW20B	-	24.61	62.59	28.1	187.20	167A8/B	17	7420	8660	15550	10150	7510	7220	6760	6760
									20	8130	9470	17030	11100	8220	7930	7400	7400
									29	10000	11670	20970	13680	10130	9760	9120	9120
									38	11650	13610	24470	15970	11810	11390	10640	10640
									46	13150	15370	27620	18020	13330	12840	12000	12000

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	30	40	50
750/70R26	TL	DW24B	-	750	1750	780	5234	158A8/B	0.8	3100	3620	6510	4250	3140	3030	2830	2830
									1.0	3530	4130	7430	4850	3590	3460	3230	3230
									1.2	3930	4600	8260	5390	3980	3840	3590	3590
									1.4	4300	5030	9040	5900	4360	4210	3930	3930
									1.6	4650	5440	9780	6380	4720	4550	4250	4250

Size	Type	Recommended Rim	Alternate Rim	Unloaded Dimension		Static Loaded Radius	Rolling Circumference	Load Index / Speed Symbol	Inflation Pressure	Recommended Load, kgs.
										Speed, km/h
										Field operation		Road Operation; Not high and Sustained Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustained Torque
				mm	mm	mm	mm		Bar	10	10	Static	10	25	30	40	50
750/70R26	TL	DW24B	-	750	1750	780	5234	172A8/B	0.8	3630	4240	7610	4970	3670	3540	3310	3310
									1.2	4600	5370	9660	6300	4660	4490	4200	4200
									1.6	5440	6350	11430	7460	5520	5320	4970	4970
									2.0	6200	7240	13020	8490	6280	6060	5660	5660
									2.4	6900	8060	14490	9450	6990	6740	6300	6300

Size	Type	Rim	Alternate Rim	Unloaded		Loaded	Rolling	Load		Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6		6	16	19	25	31
750/70R26	TL	DW24B	-	29.52	68.89	30.70	206.07	158A8/B	12	6830	7970	14340	9360	6920	6670	6230	6230
									15	7780	9100	16370	10680	7910	7620	7110	7110
									17	8660	10130	18190	11870	8770	8460	7910	7910
									20	9470	11080	19910	13000	9600	9270	8660	8660
									23	10240	11980	21540	14050	10400	10020	9360	9360

Size	Type	Rim	Alternate Rim	Unloaded		Loaded	Rolling	Load		Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6		6	16	25	31	40
650/75R32	TL	DW21B	DW20B,DW23B	25.79	69.68	31.86	213.18	169D/172A8	17	9320	10900	17890	11670	9210	8520	8170	7780
									23	11040	12910	21170	13810	10900	10090	9670	9210
									29	12580	14710	24120	15730	12420	11480	11010	10480
									35	13990	16370	26850	17510	13830	12780	12270	11670
									41	15310	17910	29380	19160	15130	13990	13410	12780

Size	Type	Rim	Alternate Rim	Unloaded		Loaded	Rolling	Load		Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6		6	16	19	25	31
800/65R32	TL	DW27B	DW25B,DH27B	31.10	72.83	32.83	217.83	181A8/178B	17	10480	12220	21980	14340	10620	10220	9560	8700
									26	13280	15510	27860	18170	13460	12970	12110	11040
									35	15700	18350	32970	21520	15930	15350	14340	13040
									44	17890	20900	37600	24520	18150	17490	16340	14870
									52	19890	23260	41810	27270	20180	19450	18170	16540

Size	Type	Rim	Alternate Rim	Unloaded		Loaded	Rolling	Load		Recommended load, lbs
										Speed, mph
										Field operation		Road Operation; Not high and Sustaind Torque
				SW	OD					High Torque	Low Torque	Road Operation; Not high and Sustaind Torque
				in	in	in	in		PSI	6	6		6	16	19	25	31
800/65R32	TL	DW27B	DW25B,DH27B	31.10	72.83	32.83	217.83	172A8/B	17	10130	11830	21280	13880	10260	9890	9250	9250
									26	12840	15000	26960	17580	13020	12530	11720	11720
									35	15200	17750	31920	20810	15400	14850	13880	13880
									44	17310	20220	36370	23720	17560	16920	15810	15810
									35	15200	17750	31920	20810	15400	14850	13880	13880
